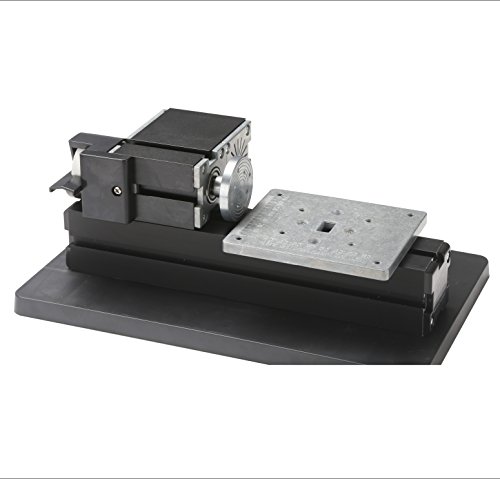

6 in 1 60W Mini Multi-function Combination Machine Tools, Mini Lathe, Jigsaw, Wood Turning Lathe, Milling Machine, Drilling Machine, Sanding Machine TZ6000M - DiZiWoods Store





Motor case and headstock are jointed. Most motor energy is 60W through the use of extra highly effective motor.

The elements in the package could be assembled into 6 sorts of machines with totally different perform- jigsaw, wood-turning lathe, metallic lathe, milling machine, drilling machine, sanding machine, just one sort of machine could be assembled every time.

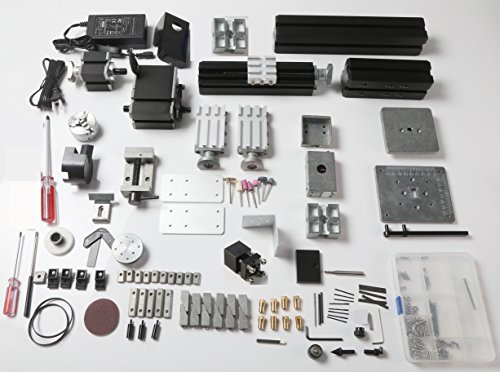

Essential elements: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, massive slider, drilling lever, drilling desk, jigsaw desk, connection piece, tailstock, sanding paper panel, machine vice(all the elements above are product of metallic), drive belt cowl, grinding wheel, wheel guard.

Technical parameters:

1.Motor velocity :12,000rpm/min(elective selection 20,000rpm/min)

2.Enter voltage/present/energy:12VDC/5A/60W Switching energy enter:AC110V-240V

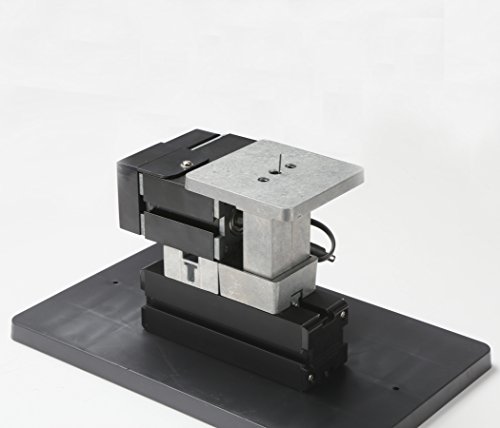

three.Jigsaw working desk measurement:90mm*90mm

four.Most working materials diameter of metallic lathe and woodturning lathe:50mm

5.Working materials size of metallic lathe and woodturning lathe:135mm

6.Center peak of metallic lathe:50mm

7. Slider journey: axis X 145mm, axis Y 32mm, axis Z 32mm.

eight. Collets:1-6mm

9. Drilling working desk measurement: 123*100mm

10. Most workpiece measurement clamped by

eleven. Most workpiece diameter clamped by three-jaw chuck:50mm

12. All the machines are protected contact besides milling machines. It requests for use beneath mother and father or academics instruction when the milling machine is being utilized by the youngsters. Working materials thickness of jigsaw: hardwood 4mm, plywood 7mm, gentle wood 18mm, aluminum zero.5mm, acrylic 2mm. It"s a good software for households and faculties to do mannequin airplane and different wood mannequin crafts.

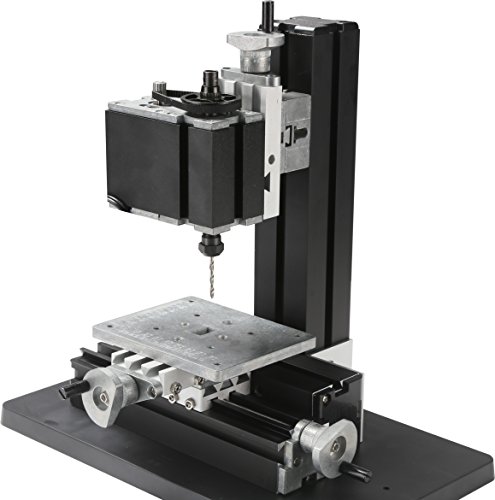

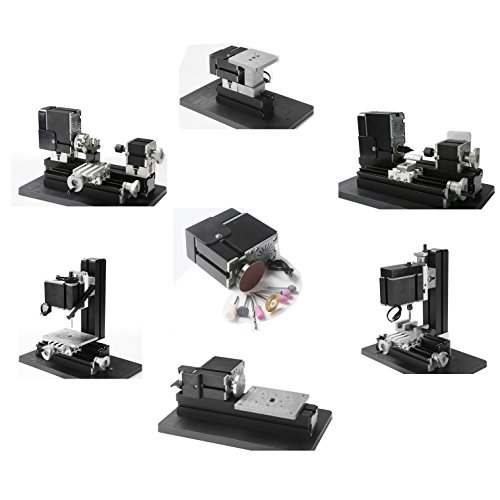

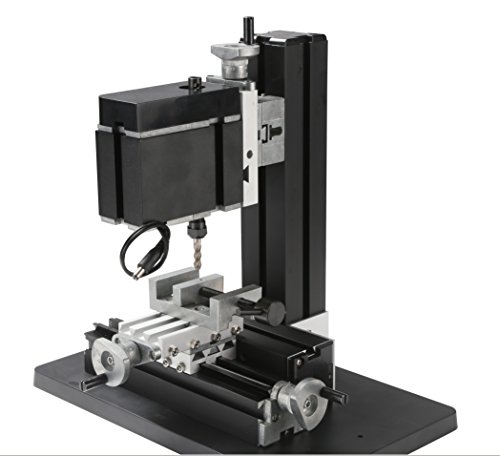

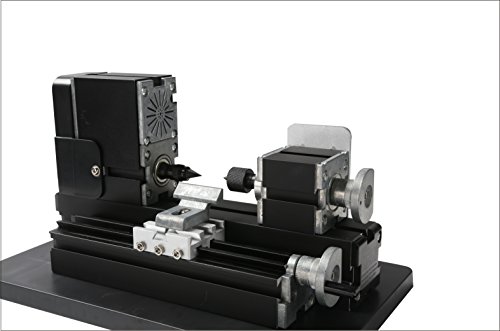

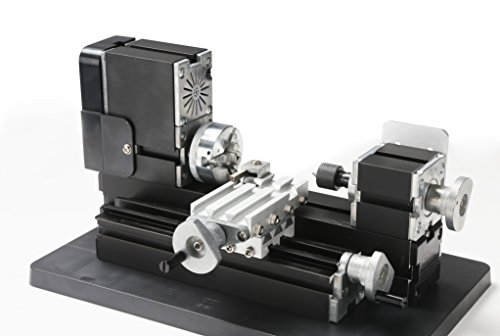

Might be assembled into 6 sorts of machines. Jigsaw, Wood-turning Lathe, Metal Lathe, Milling Machine, Drilling Machine, Sanding Machine
Motor: 60w, 12000RPM,
Max working materials measurement: 125mm*50mm
Slider journey: axis X one hundred forty five, axis Y 32, axis Z 32.
Switching energy enter:AC110V-240V
